Enterprise Reliability for Scalable Rackmount Storage

Built for central data management, backup, virtualization, and surveillance, this rackmount NAS delivers strong performance with business-ready service continuity. The Synology RS3626xs RackStation 12-Bay 10GbE Rackmount NAS provides 12-bay storage, built-in dual 10GbE connectivity, and expansion up to 36 drive bays for growing enterprise environments.

Highlights

High-Performance Enterprise Storage

• Over 6,300 MB/s sequential read throughput
• Over 3,700 MB/s sequential write throughput
• Over 115,000 4K random write IOPS
• Designed for demanding workloads across business and enterprise environments

Scalable Up to 36 Drive Bays

• 12-bay 2U rackmount design
• Expands up to 36 drive bays with two Synology RX1225RP expansion units
• Supports up to 864 TB raw storage after expansion
• Suitable for growing data, backup, and centralized storage needs

Built-In 10GbE with Flexible Expansion

• Dual built-in 10GbE RJ45 ports
• Supports 10GbE and 25GbE network expansion
• Supports Fibre Channel adapter options
• Two PCIe 4.0 expansion slots for high-speed connectivity upgrades

Business Continuity and Serviceability

• Redundant power supplies help prevent single-point power failures
• Hot-swappable drives and fans support easier maintenance
• Synology High Availability supports failover with two identical units
• Out-of-band management enables remote diagnostics and critical log access

Key Features

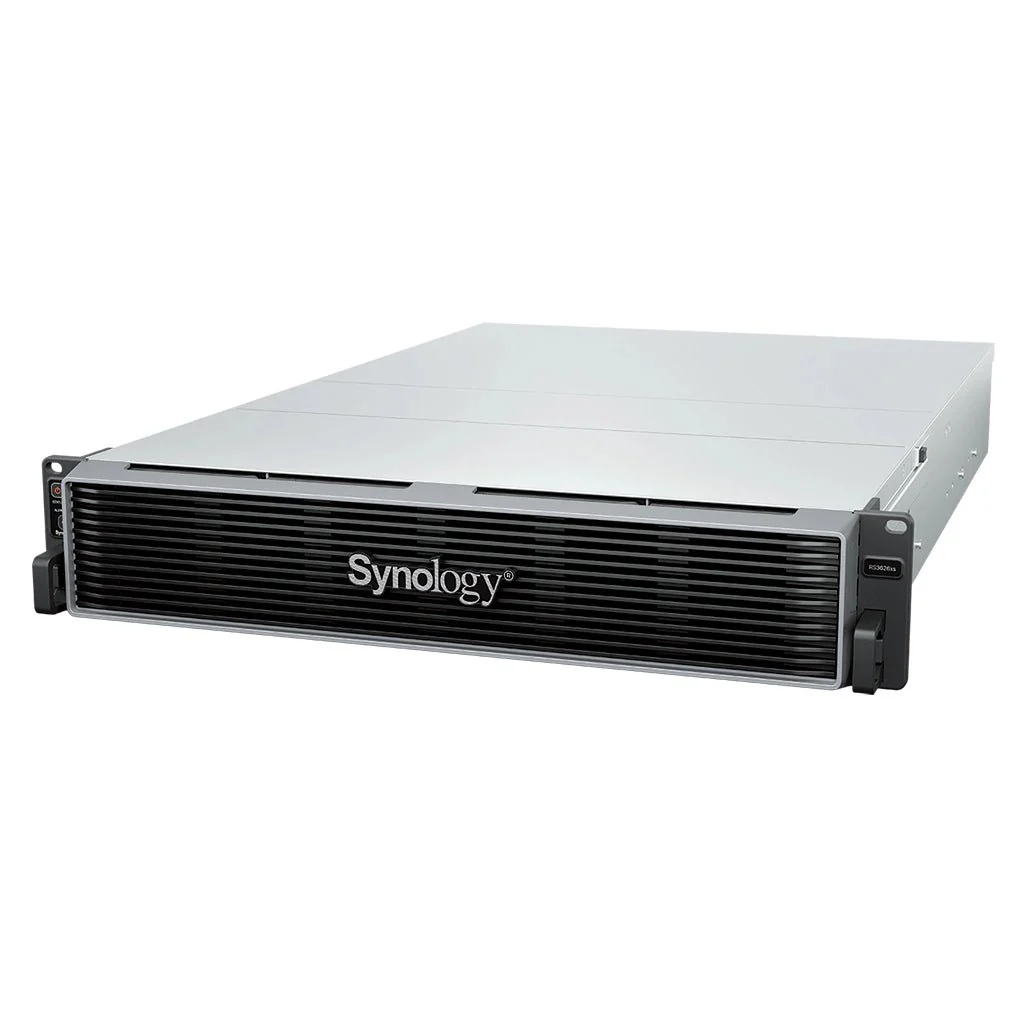

Synology RS3626xs RackStation 12-Bay 10GbE Rackmount NAS

• 12-bay rackmount NAS for enterprise storage, backup, surveillance, and virtualization
• Runs Synology DiskStation Manager for centralized storage and application management
• Supports all-flash and hybrid storage configurations
• Supports SSD caching to reduce latency and improve IOPS in HDD arrays
• Designed for central storage, multi-site access, and business-critical workloads

Scalable Storage Architecture

• Supports 3.5 inch SATA HDD and 2.5 inch SATA SSD
• Expands with up to two RX1225RP expansion units
• Supports Synology Tiering to move inactive data to lower-cost tiers
• Can be configured as hot or cold storage depending on deployment needs
• Helps optimize storage ROI while preserving high-performance storage for active workloads

Enterprise Processing and Memory

• Intel Xeon D-1726 processor
• 6-core, 12-thread CPU architecture
• 8 GB DDR4 ECC UDIMM system memory
• Expandable up to 48 GB with six memory slots
• Hardware encryption engine for secured data operations

Business Backup and Data Protection

• Active Backup Suite supports endpoints, servers, VMs, Microsoft 365, and Google Workspace
• Snapshot Replication provides scheduled restoration points with version control
• Hyper Backup supports full-system, shared folder, and configuration backups
• Immutable snapshots and WriteOnce shared folders help protect against accidental or malicious deletion
• Full-volume encryption helps protect sensitive data against physical data breaches

Virtualization-Ready Storage Platform

• Certified for VMware vSphere, Microsoft Hyper-V, Citrix XenServer, and OpenStack environments
• Supports VMware VAAI, Windows ODX, and ALUA for accelerated storage operations
• Supports SAN Manager with iSCSI, Fibre Channel, LUN snapshots, and cloning
• Suitable as VM storage, VM backup server, or containerized workload platform

Private Cloud and Multi-Site Collaboration

• Synology Drive enables secure file access, sharing, and synchronization across platforms
• Hybrid Share supports multi-site teamwork with cloud-powered file synchronization
• Synology Office Suite supports document collaboration, mail, chat, calendar, and contacts
• AI-assisted productivity tools support drafting, summarizing, and data analysis within the Synology ecosystem

Surveillance and Centralized Management

• Supports up to 90 IP cameras depending on resolution and codec
• Includes two default Surveillance Station licenses
• Supports centralized monitoring, investigation, management, and backup workflows
• Central Management System provides a single interface to manage and monitor multiple Synology NAS systems

Hardware and Deployment Design

• 2U rackmount form factor
• Dimensions: 88 x 482 x 724 mm
• Weight: 14.5 kg
• Two 10GbE RJ45 LAN ports
• One dedicated out-of-band management LAN port
• Two USB 3.2 Gen 1 ports
• Two Mini-SAS HD expansion ports
• Four 80 mm system fans
• Rack installation support with Synology RKS-02 rail kit, sold separately

Warranty and Expansion Ecosystem

• 5-year limited warranty
• Compatible with Synology RX1225RP expansion units
• Supports Synology Enterprise Series 3.5 inch SATA HDDs and 2.5 inch SATA SSDs
• Supports M.2 SSD and 10GbE combo adapter cards
• Supports 10GbE and 25GbE network interface cards

Summary / Conclusion

The Synology RS3626xs RackStation 12-Bay 10GbE Rackmount NAS is built for businesses that need dependable rackmount storage, high-speed access, and strong operational continuity. With 12 native drive bays, expansion up to 36 bays, built-in dual 10GbE, Intel Xeon processing, ECC memory, advanced backup protection, virtualization support, and 5-year warranty coverage, it provides a reliable foundation for centralized storage, business continuity, surveillance, and multi-site collaboration.
