Enterprise Firewall Performance for High-Capacity Networks

Built for large-scale organizations that need high throughput, advanced security, and resilient connectivity, this enterprise cloud gateway combines hyperscale-class compute, real-time threat protection, SSL inspection, and high availability in one platform. The Ubiquiti EF-Core Enterprise Firewall Core 100Gbps Cloud Gateway with High Availability delivers 100 Gbps gateway-class connectivity, 79 Gbps IDS/IPS throughput, 22,500+ client capacity, and support for 5,000+ concurrent IPsec tunnels.

Highlights

Enterprise-Class Throughput

• 100 Gbps cloud gateway platform for high-capacity networks
• 79 Gbps IDS/IPS throughput
• Supports 22,500+ simultaneous connected users
• Handles up to 10 million concurrent sessions

Real-Time Security at Scale

• SSL inspection and URL filtering
• Application-aware Layer 7 firewall
• 95,000+ IDS/IPS signatures with CyberSecure Enterprise
• Threat intelligence updates with CyberSecure Enterprise

Large-Scale VPN and SD-WAN

• Supports 5,000+ concurrent IPsec and WireGuard tunnels
• Up to 38 Gbps aggregate IPsec throughput
• License-free SD-WAN support
• Site Magic, IPsec, OpenVPN, WireGuard, L2TP, and Teleport VPN support

Built-In High Availability

• Shadow Mode with VRRP gateway failover
• Two hot-swappable AC/DC 550W power supplies
• Supports LACP port aggregation and multi-WAN load balancing
• Designed for resilient enterprise network operations

Key Features

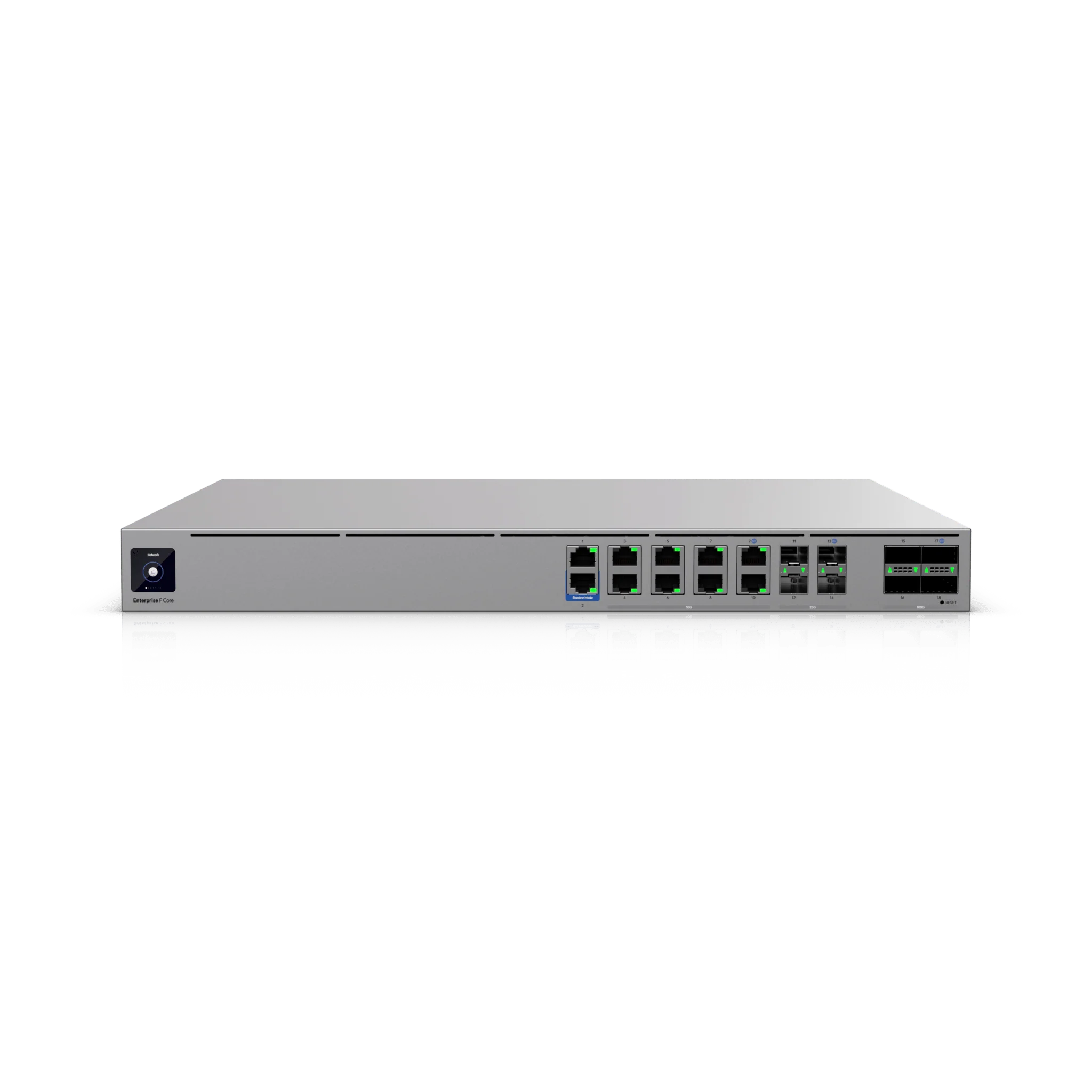

Ubiquiti EF-Core Enterprise Firewall Core 100Gbps Cloud Gateway with High Availability

• Enterprise-class UniFi cloud gateway with high availability
• 1U rackmount form factor for data center and enterprise rack deployment
• Powered by 24-core ARM v9 processor at 2.5 GHz
• 32 GB system memory with integrated 128 GB SSD
• Managed through UniFi Network

High-Capacity Network Architecture

• Supports 2,250+ managed UniFi devices
• Supports 22,500+ simultaneous users
• Maximum WAN port count of 8
• 120,000 new sessions per second
• 130,000 MAC address table size

100G, 25G, and 10GbE Connectivity

• Default WAN ports include 1 x 100G QSFP28, 1 x 25G SFP28, and 1 x 10 GbE RJ45
• Port layout includes 4 x 100G QSFP28 ports supporting 100G and 40G
• Includes 4 x 25G SFP28 ports supporting 25G, 10G, and 1G
• Includes 8 x 10 GbE RJ45 ports supporting 10G, 5G, 2.5G, 1G, and 100M
• Includes 2 x 1 GbE RJ45 ports, 1 management port, and 1 console port

Advanced Firewall and Threat Protection

• Stateful firewall
• Application-aware Layer 7 firewall
• SSL inspection and URL filtering
• DPI and traffic identification
• Zone-based firewall filtering for regions, domains, and applications
• Content filtering, ad blocking, and intrusion prevention

VPN and SD-WAN Control

• License-free SD-WAN for scalable site connectivity
• Site-to-site VPN support through Site Magic, IPsec, and OpenVPN
• VPN server support for Identity Endpoint One-Click VPN, Teleport, WireGuard, OpenVPN, and L2TP
• VPN client support for OpenVPN and WireGuard
• Policy-based WAN and VPN routing for controlled traffic flow

Enterprise Networking Features

• Multi-WAN load balancing
• Shadow Mode high availability with VRRP
• LACP port aggregation
• Dynamic routing with OSPF and BGP
• Advanced QoS and multicast DNS
• Advanced NAT including SNAT, DNAT, masquerade, NAT pooling, and 1-to-1 NAT
• Integrated RADIUS server and RADIUS over TLS

Hardware and Deployment Design

• Dimensions: 442.4 x 43.7 x 400 mm
• Weight: 7.85 kg
• Aluminium CNC and SGCC steel enclosure
• 1.3 inch touchscreen LCM display
• Ethernet and Bluetooth management
• Maximum power consumption: 171 W
• Heat dissipation: 585 BTU/hr

Operating Environment and Compliance

• Operating temperature: 0 to 40°C
• Operating humidity: 5 to 95 percent non-condensing
• ESD/EMP protection: air ±8 kV, contact ±4 kV
• NDAA compliant
• Certified with CE, FCC, and IC

Summary / Conclusion

The Ubiquiti EF-Core Enterprise Firewall Core 100Gbps Cloud Gateway with High Availability is designed for organizations that require uncompromising firewall throughput, large-scale VPN capacity, high availability, and centralized UniFi management. With 100G connectivity, 79 Gbps IDS/IPS throughput, SSL inspection, CyberSecure Enterprise protection, redundant hot-swappable power supplies, and support for thousands of tunnels and users, it provides a powerful foundation for enterprise SD-WAN, distributed networks, and high-capacity security deployments.
