Outdoor Ethernet Protection for High-Speed Network Links

Designed to protect outdoor Ethernet devices from ESD and surge events, this passive accessory helps improve deployment reliability for high-speed PoE networks. The Ubiquiti ETH-SP-G2 UACC-ETH-SP-Pro Ethernet Surge Protector provides surge-protected RJ45 connectivity with weatherproof housing options for 2.5 GbE and 10 GbE network environments.

Highlights

Protection for Outdoor Ethernet Devices

• Helps protect outdoor Ethernet devices from ESD and surge events
• Designed for high-speed outdoor network deployments
• Supports PoE passthrough for compatible installations

Passive RJ45 Surge Protection

• Includes two passive, surge-protected RJ45 female connections
• Simple inline installation between outdoor Ethernet devices and network equipment
• Quick and easy installation for outdoor cabling protection

High-Speed Network Compatibility

• ETH-SP-G2 supports data line protection up to 2.5 Gbps
• UACC-ETH-SP-Pro supports data line protection up to 10 Gbps
• Suitable for outdoor PoE links requiring higher network throughput

Weatherproof and Durable Design

• IPX5 weatherproofing for outdoor placement
• Polycarbonate enclosure for lightweight durability
• ETSI300-019-1.4 shock and vibration certification

Key Features

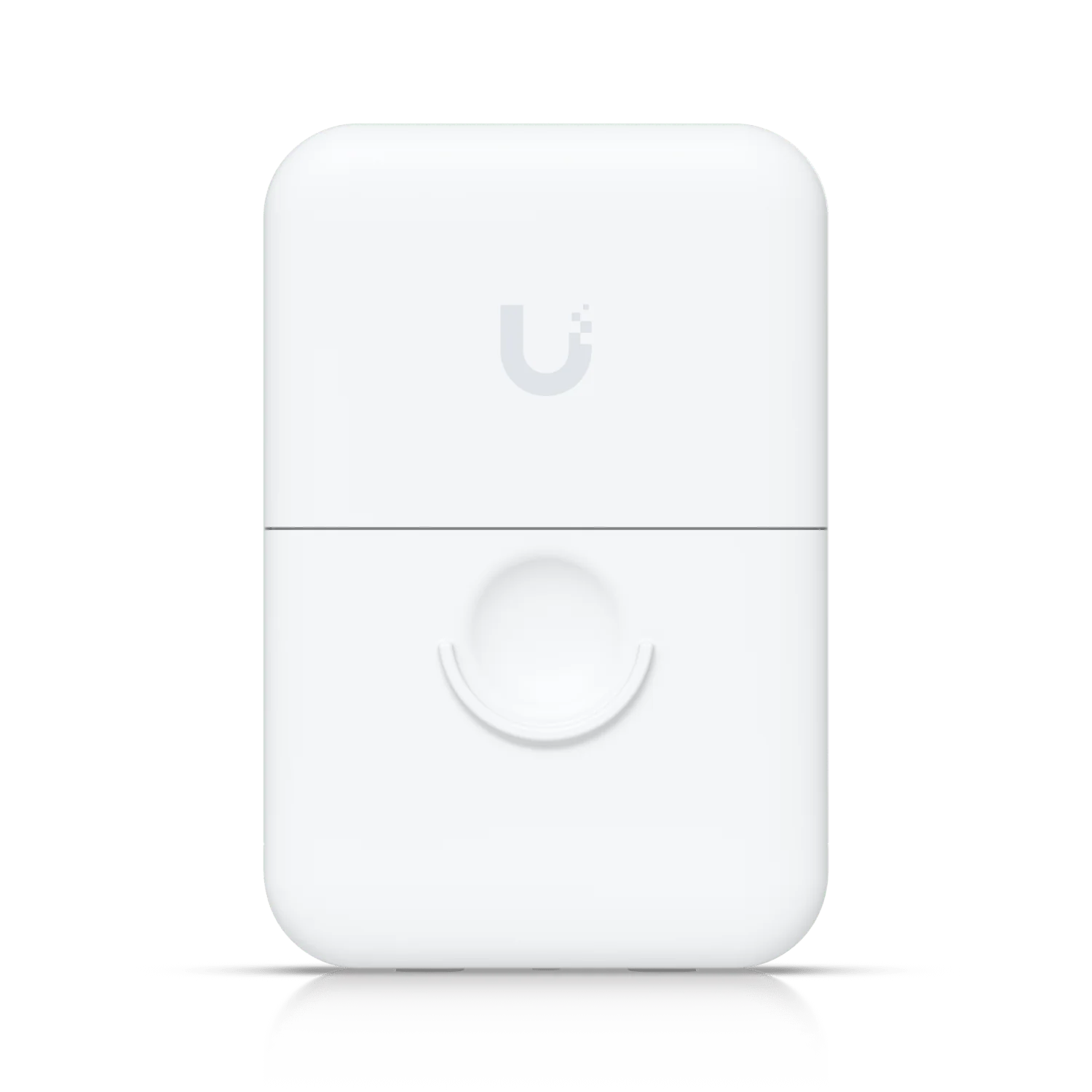

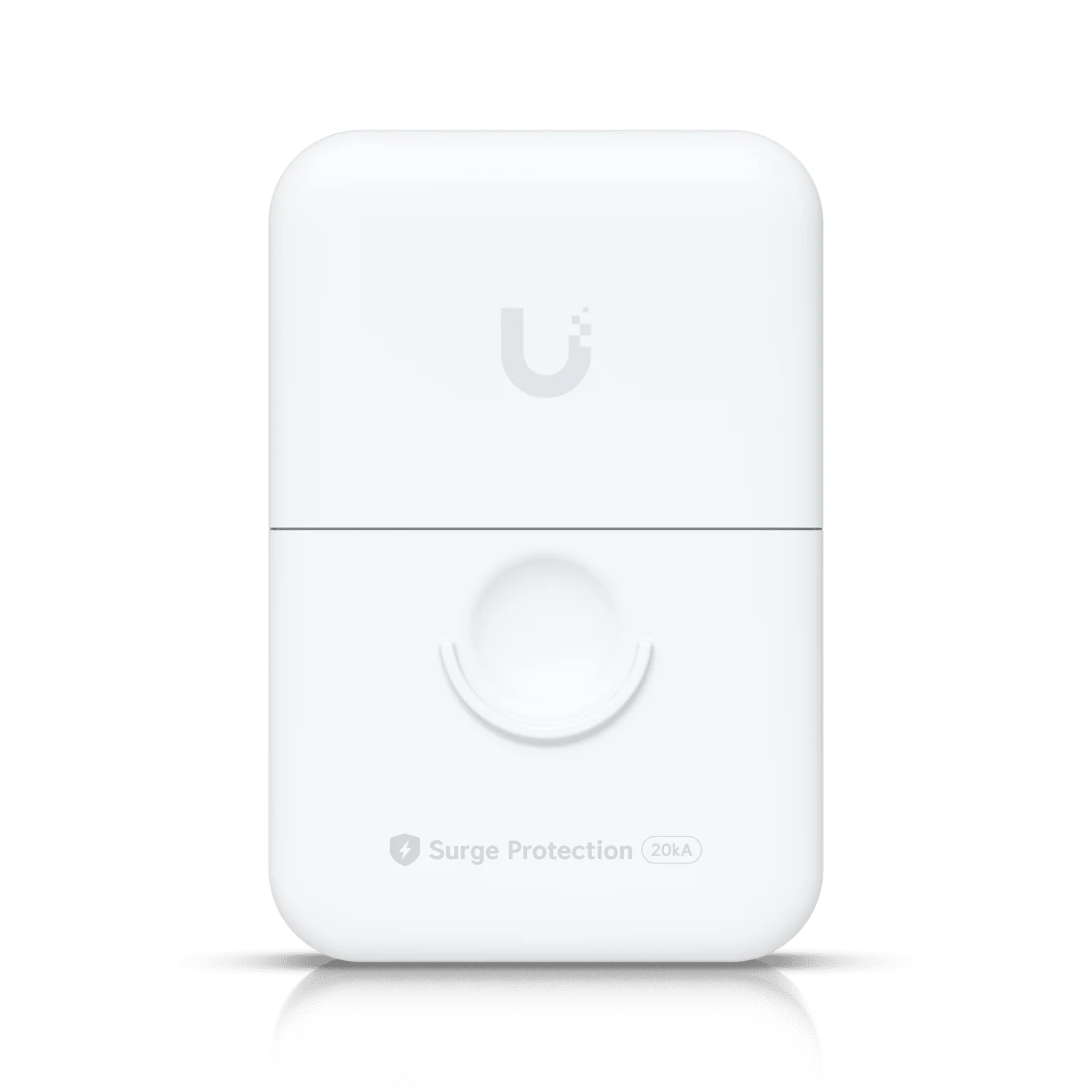

Ubiquiti ETH-SP-G2 UACC-ETH-SP-Pro Ethernet Surge Protector

• Passive Ethernet surge protection accessory for outdoor high-speed networks
• Designed with two RJ45 female connectors
• Supports PoE passthrough
• Provides ESD or ESD/EMP protection depending on model
• Built for quick deployment in outdoor Ethernet installations

Model Comparison

Feature	ETH-SP-G2	UACC-ETH-SP-Pro
Data Line Protection	Up to 2.5 Gbps	Up to 10 Gbps
Discharge Current	10 kA+	20 kA
Networking Interface	2 x RJ45 female connectors	2 x RJ45 female connectors
Weatherproofing	IPX5	IPX5
PoE Support	Yes	Yes
Weight	80 g	95 g
Dimensions	91 x 61 x 32.5 mm	91 x 61 x 32.5 mm

Surge and ESD Protection

• DC spark-over voltage: 90 V at 100 V/s
• ETH-SP-G2 maximum impulse spark-over voltage: 700 V at 1 kV/µs
• UACC-ETH-SP-Pro maximum impulse spark-over voltage: 600 V at 1 kV/µs
• Absorbs transient current with response to surge voltage from 100 V/s to 1 kV/µs

Installation and Deployment Value

• Designed for outdoor Ethernet device protection
• Passive inline design simplifies deployment
• Supports PoE network links without requiring an active powered device
• Helps protect outdoor network cabling paths in professional installations

Operating Environment

• Operating temperature: -30 to 65°C
• Operating humidity: 10 to 90 percent non-condensing
• Enclosure material: polycarbonate
• Weatherproofing: IPX5
• Shock and vibration certification: ETSI300-019-1.4 standard

Summary / Conclusion

The Ubiquiti ETH-SP-G2 UACC-ETH-SP-Pro Ethernet Surge Protector range provides practical outdoor Ethernet protection for PoE network deployments. With passive surge-protected RJ45 connections, IPX5 weatherproofing, PoE support, and data line protection options up to 2.5 GbE or 10 GbE, it helps improve reliability for outdoor high-speed network links.
