Long-Range Motion Detection with Extended Battery Efficiency

Engineered for perimeter and interior intrusion monitoring, this SuperLink motion sensor delivers reliable PIR detection with ultra-low power consumption and seamless UniFi Protect integration across large facilities.

Highlights

Dual PIR Detection Architecture

• Horizontal PIR detection range up to 1.5 m
• Vertical PIR detection range up to 6 m
• Integrated pet immunity to reduce false alarms

Extended SuperLink Coverage

• Proprietary SuperLink wireless connectivity
• Up to 2 km line-of-sight communication range
• Optimized for distributed deployments and remote zones

Long Battery Life Operation

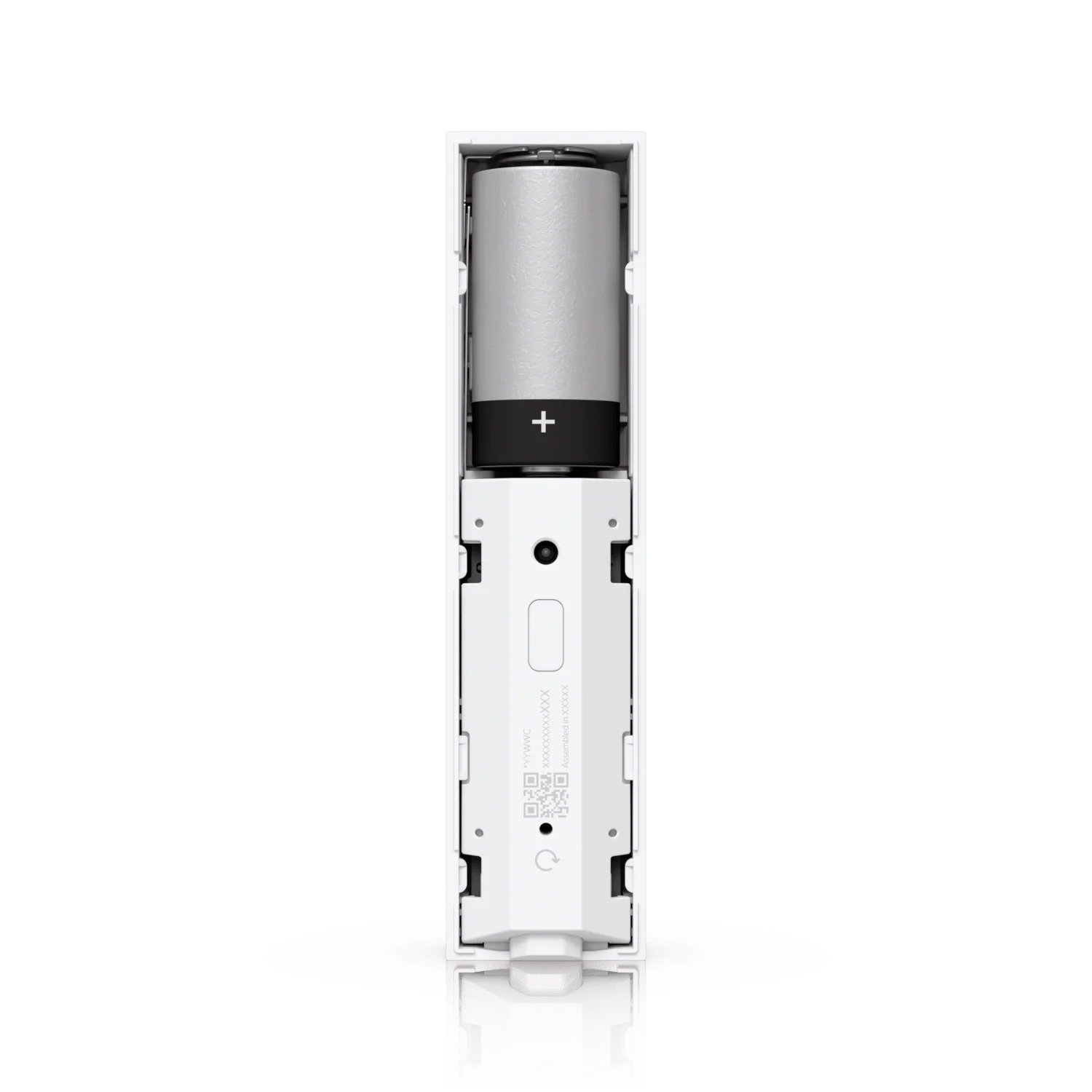

• Powered by CR123A lithium battery
• Up to 6 years battery life
• Maximum power consumption 22.6 mW

Key Features

Ubiquiti USL-Motion SuperLink Motion Sensor

• Managed through UniFi Protect application suite
• NDAA compliant for regulated installations
• Designed for scalable campus and industrial deployments

Long-Range Wireless Performance

• Operating frequencies
US 915.6 to 927.6 MHz
EU 865.1 to 869.5 MHz
• Antenna gain 1 dBi
• Maximum transmit power 14 dBm
• Maximum range up to 2 km line-of-sight

Flexible Installation Options

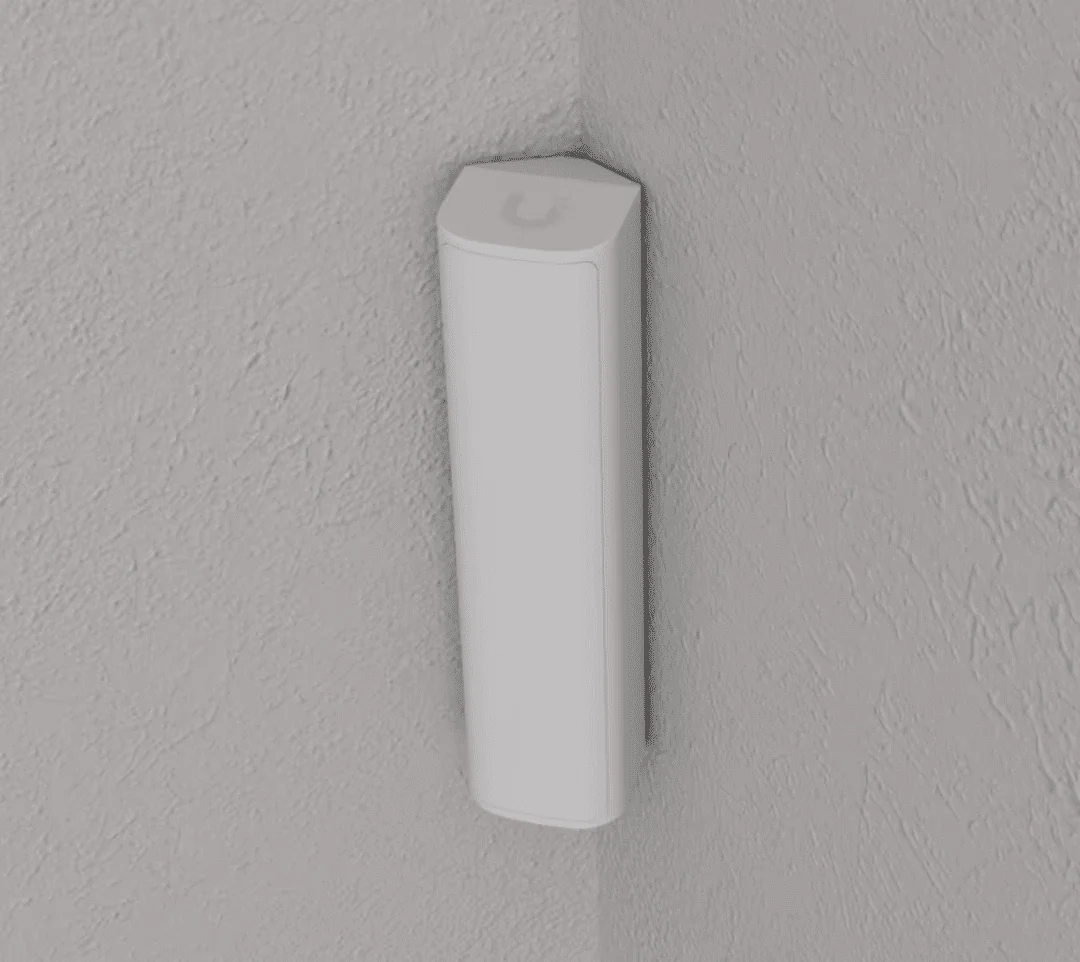

• Wall and corner mount configurations

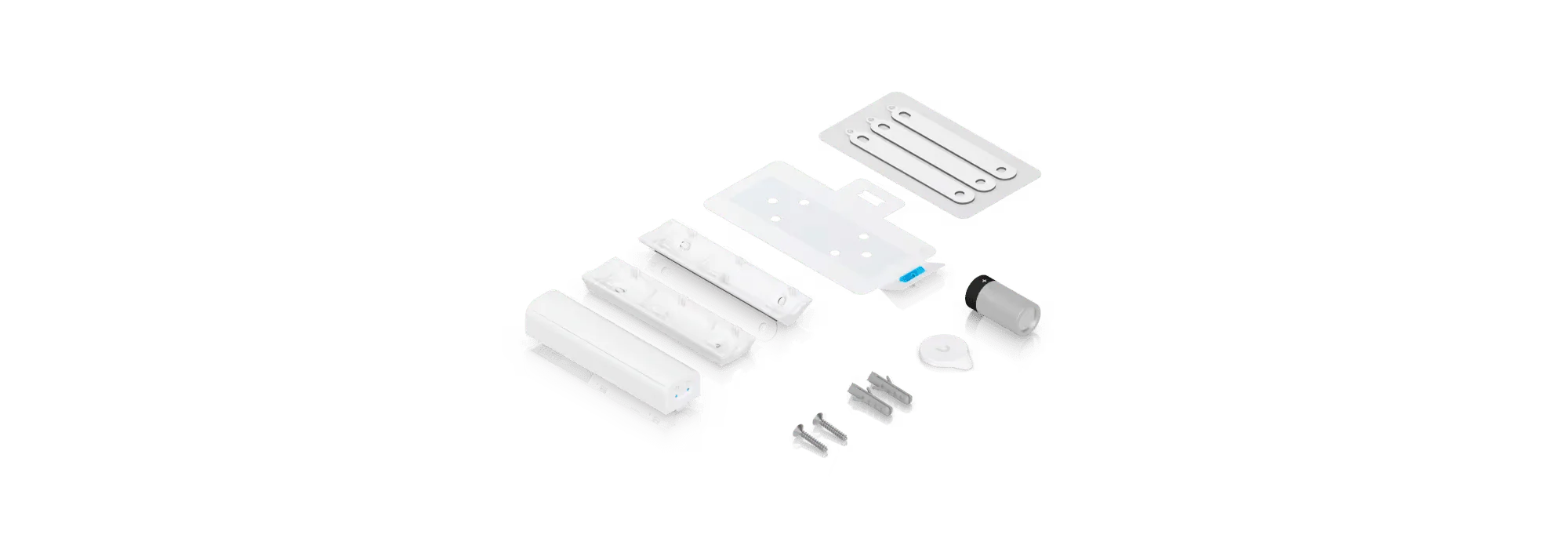

• Adhesive and screw mounting included
• Dimensions with wall mount 93.5 × 22.5 × 24.7 mm
• Dimensions with corner mount 93.5 × 22.5 × 27.9 mm

Hardware and Environmental Specifications

• Supported voltage 3V
• Weight 45 g
• Enclosure material polycarbonate and high-density polyethylene
• Operating temperature 0 °C to 40 °C
• Operating humidity 10 to 90 percent noncondensing

Summary / Conclusion

Ubiquiti USL-Motion SuperLink Motion Sensor provides long-range PIR motion detection with pet immunity and extended battery life for reliable intrusion monitoring. With up to 2 km SuperLink connectivity and UniFi Protect integration, it enables scalable security coverage across offices, retail spaces, campuses, and distributed industrial facilities.
